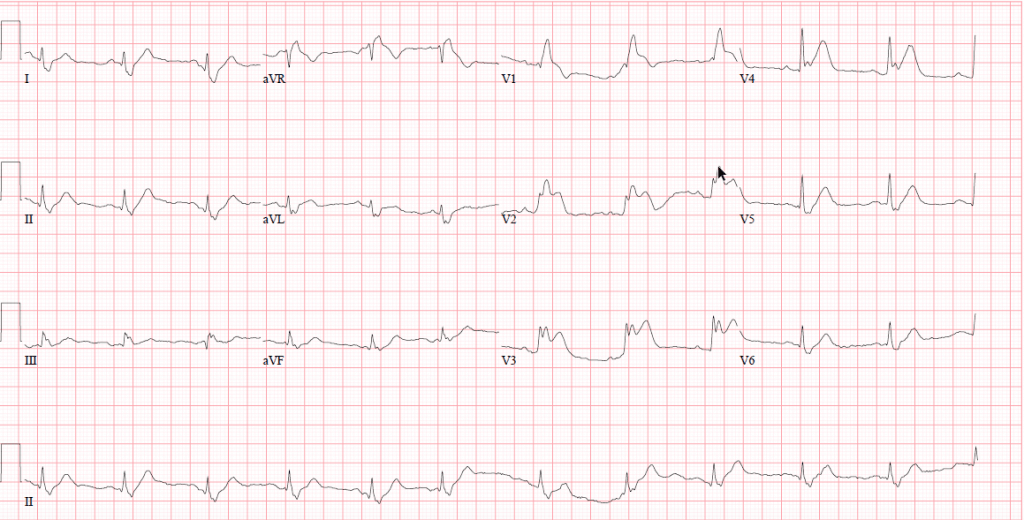

Anterior STEMI with RBBB
  • Note the ST elevation in leads V2 and V3.
  • There is a wide QRS consistent with a RBBB.
  • Subtle ST depression in the inferior leads.

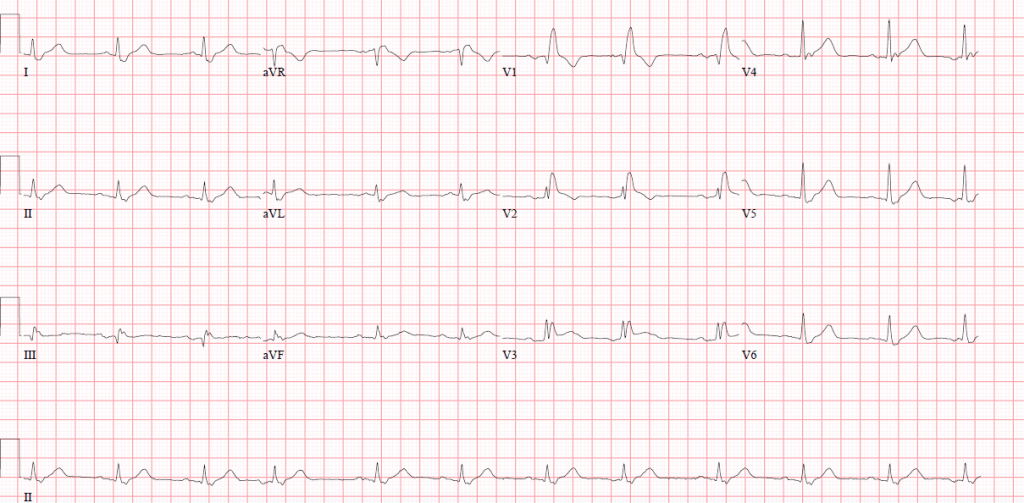

  • Same patient post PCI.
  • Note the significant improvement in the ST elevation.
  • RBBB looks more typical given the ST have improved.
