POCUS Cardiac Views

Parasternal Long Axis

Reduce depth to display only LV, LA, MV. AOV. and RV

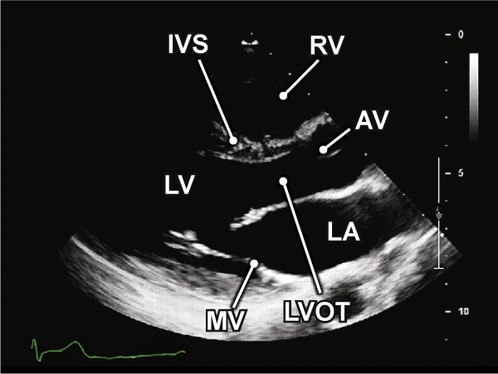

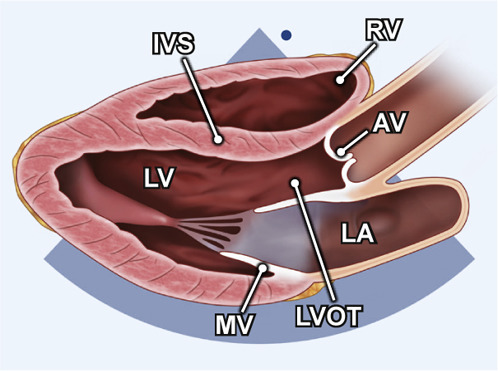

Acquisition: Parasternal window PLAX view Left sternal border, transducer orientation toward right shoulder, beam positioned perpendicular to left ventricle

Structures to demonstrate: LA MV LV LVOT AV IVS RV

Parasternal Short Axis

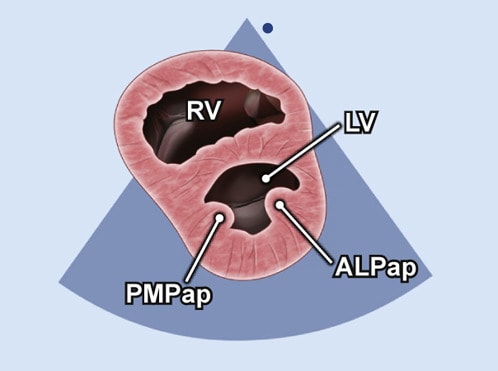

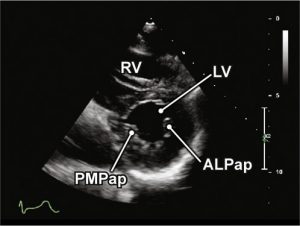

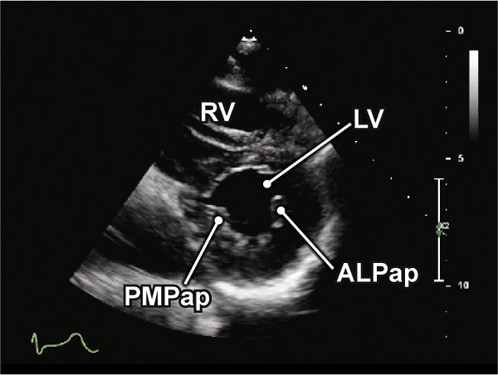

2D loop of LV at mid papillary level

Acquisition: Parasternal window PSAX view. Tilt inferiorly from MV

Structures to demonstrate: RV IVS PMPap ALPap LV

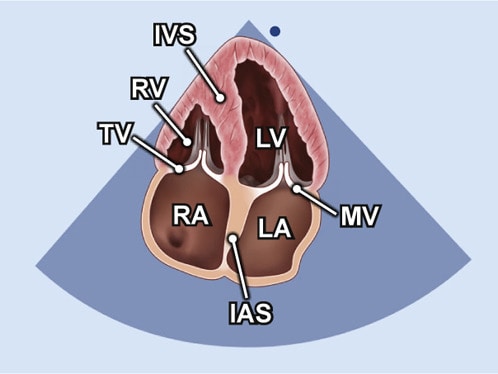

Apical 4 Chamber

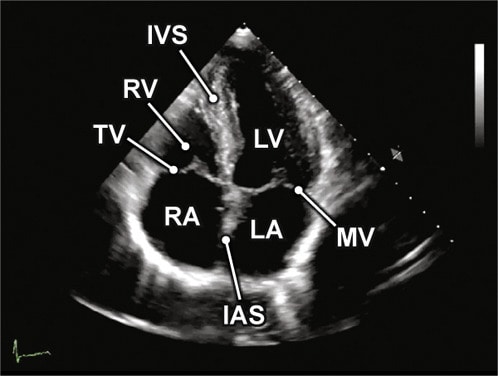

2D view at at optimal depth to display all 4 cardiac chambers

Acquisition: Move to patient’s left side to identify apical impulse, align orientation toward bed

Structures to demonstrate: LA MV LV RA RV TV IVS IAS

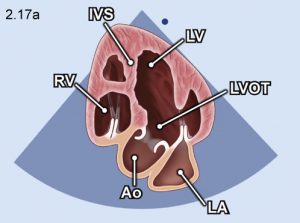

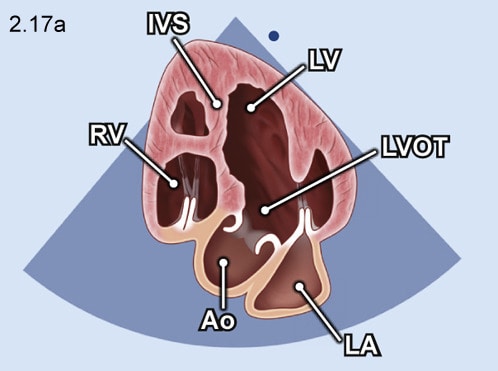

Apical 5 Chamber

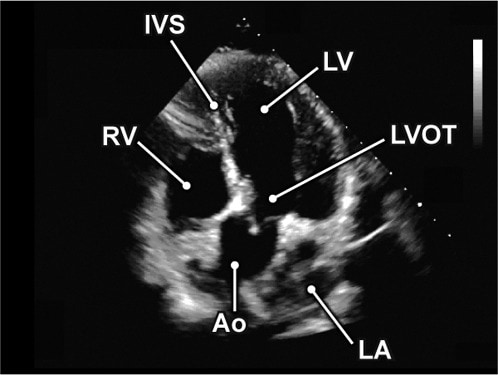

2D view to show all five chambers

Acquisition: From the A4C view tilt the beam anteriorly to show the LVOT

Structures to demonstrate: LA MV LV IVS LVOT RA RV

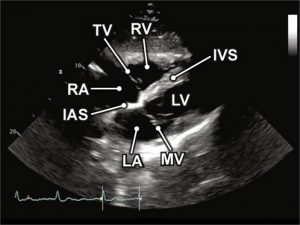

Subcostal 4 Chamber

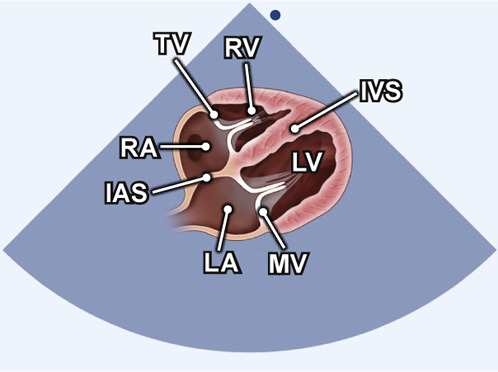

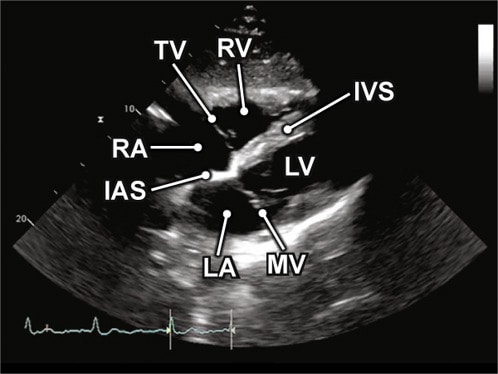

2D view of all 4 chambers

Acquisition: Patient supine with transducer at subxiphoid position, orientation marker toward patient’s left shoulder

Structures to demonstrate: LA MV LV LVOT AV IVS RV

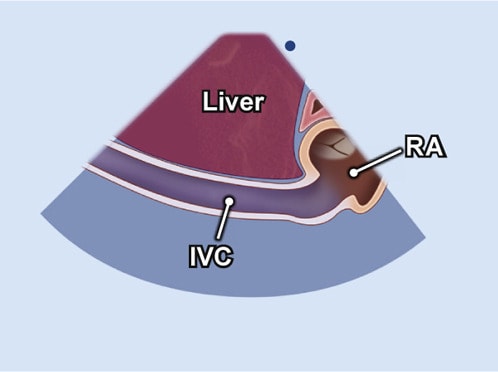

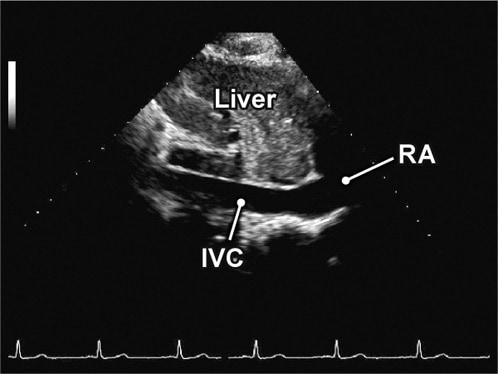

Subcostal IVC

IVC with sniff to show respiratory variation

Acquisition: From subcostal 4 chamber turn probe counterclock wise 90 degrees

Structures to demonstrate: IVC

Prepared for CardioGuide by Atul Jaidka. Images and videos from ASE 2019 Guidelines for Performing a Comprehensive Transthoracic Echocardiographic Examination in Adults: Recommendations from the American Society of Echocardiography
